Plans available

Measurements on plans are given in full size increments to aid modelers building in different scales. In other words, if the prototype has a 50' hull it will show 50' on the plans. Since the offering of plans is a hobby of mine and not a full time business, plans are printed on 8.5" x 11" and 8.5" x 14" paper and are marked with a match up line for drawings larger than printable area whereas the paper can be cut and taped together to make a complete set of plans. Plans are 1/8"=1' unless otherwise noted.

Click here to print an order form.

  All "click here to see model" links are working now.



ST. LOUIS SHIPBUILDING



COOPERATIVE ENTERPRISE 200' x 54'

$ 15.00 TRIPLE SCREW

photo courtesy boat photo museum

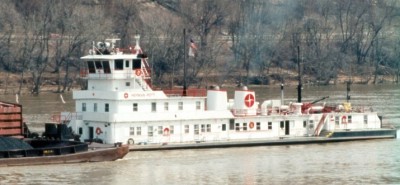

HERMAN POTT 168' x 40'

$ 15.00 TWIN SCREW

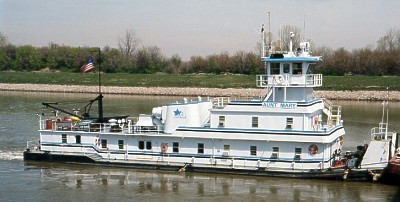

AUNT MARY 114' x 30'

$ 10.00 TWIN SCREW

photo courtesy of John Miller









DRAVO

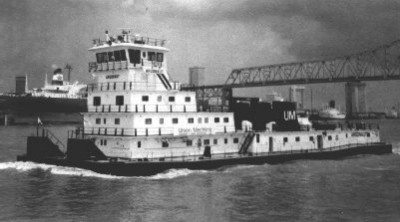

ARGONAULT 190' x 54'

$ 15.00 TRIPLE SCREW

photo courtesy boat photo museum

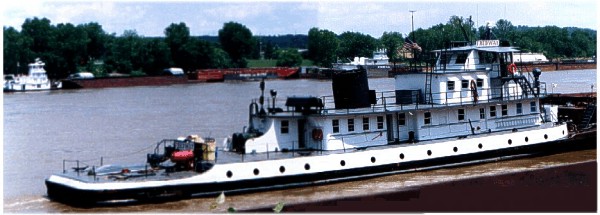

FRED WAY 145' x 28'

$ 15.00 TWIN SCREW

(click here to see model)

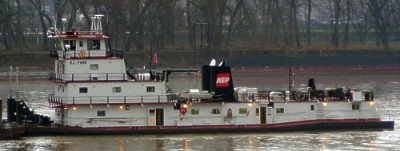

G. L. FURR 140' x 42'

$ 15.00 TWIN SCREW

(click here to see model)

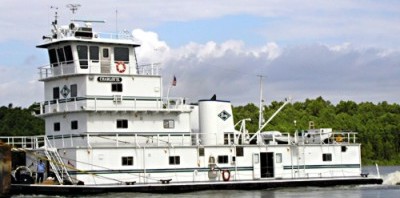

CHARLOTTE 110' x 34'

$ 10.00 TWIN SCREW

photo courtesy of John Miller









JEFFBOAT

BILL ELMER 180' x 52'

$ 15.00 TRIPLE SCREW

photo courtesy boat photo museum

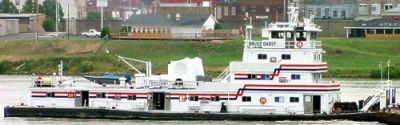

BRUCE DARST 145' x 48'

$ 15.00 TWIN SCREW

(click here to see model)

photo courtesy of Bill Alden

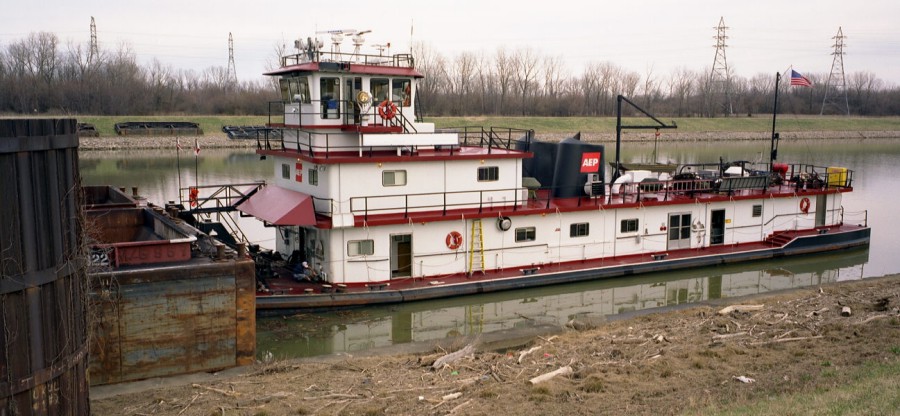

JEFFERY A. RAIKE 126' x 33'.8"

$ 10.00 TWIN SCREW

photo courtesy of Bill Alden

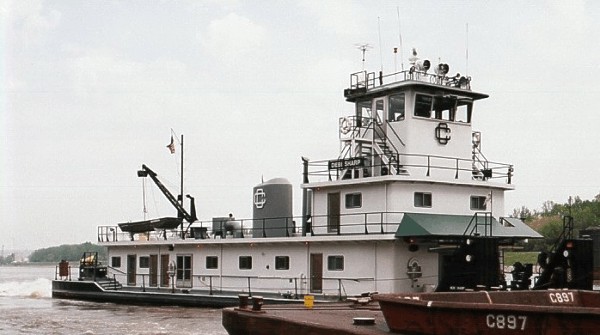

DEBI SHARP 120' x 33.8'

$ 10.00 TWIN SCREW

 photo courtesy of Bill Alden









ASSORTED SHIPYARDS... builder listed at end of listing

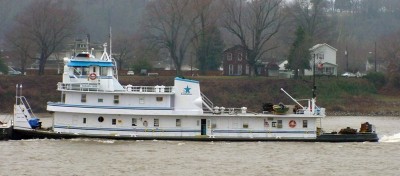

MAMA LERE 132' x 30'

$ 10.00 TWIN SCREW Nashville Bridge







SOLVAY 145' x 28'

$ 10.00 TWIN SCREW Hillman Barge



photo courtesy of John Miller

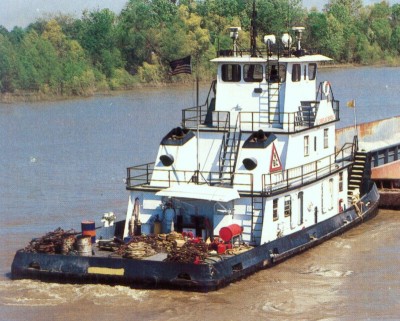

JOEY CAROL 84' x 30'

$ 10.00 TWIN SCREW Sea-Fab

(click here to see model)

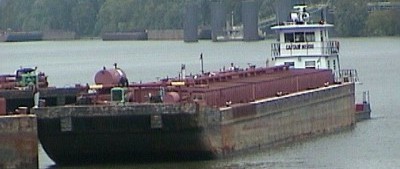

CAPTAIN MERDIE 60' x 22'

$ 5.00 TWIN SCREW Serodino, Inc

(click here to see model)











FRANKLIN-B 59' x 22'

$ 5.00 TWIN SCREW Yates Marine

(click here to see model)









E.W.THOMPSON 59' x 22'

$ 5.00 TWIN SCREW National Marine













JOHN J. D. 55' x 22'

$ 5.00 TWIN SCREW Eymard & Sons Shipyard

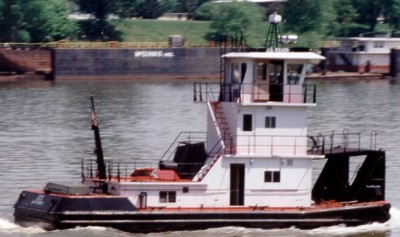

C.D. WILSON 56' x 22'

$ 5.00 TWIN SCREW Marine Builders

(click here to see model)

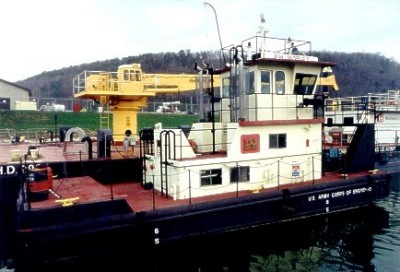

P. H. WORLEY 50' x 18' 3/16"=1'

$ 5.00 TWIN SCREW Halter Marine

(click here to see model)













STERN WHEELERS

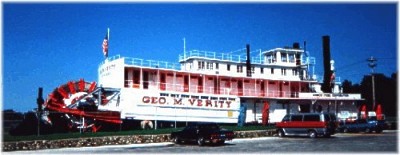

GEORGE M. VERITY130' x 40'

$ 15.00 Dubuque Boiler Works

(click here to see model)

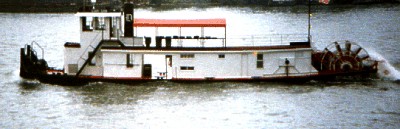

LADY LOIS 92.5' x 20'

$ 10.00 Nashville Bridge Co.

(click here to see model)





BARGES

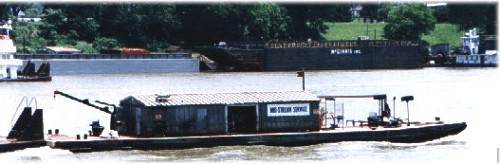

FUEL FLAT 30' x 115'

$ 5.00

(click here to see model)



AmClyde CRANE 195' x 54'

$ 15.00

(click here to see model)

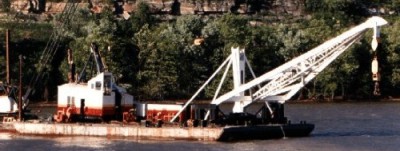

"A" frame heavy lift barge 120' x 52'

$ 5.00

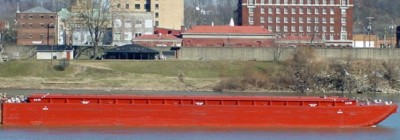

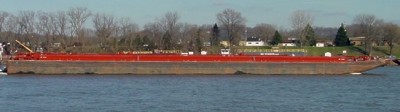

HOPPER BARGE 195' x 35'

$ 5.00





BENZINE TANK BARGE 195' x 35' 1 /32"=1'

$ 5.00







A. I. TANK BARGE 297.5' x 54' 1/16"=1'

$ 5.00

(click here to see model)

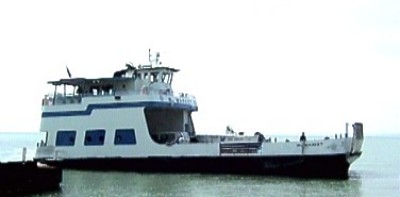

WILLIAM MARKET

auto/passenger ferry 96' x 38'

$ 10.00

(click here to see model)





OLD RIVER BILL'S PLANS

Bill's plans are 1/8" = 1'

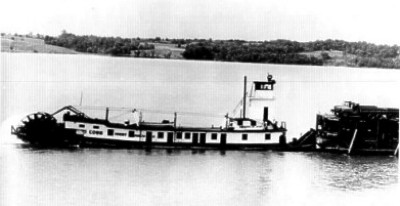

IRVING S. COBB 105' x 28'

$ 15.00

photo courtesy boat photo museum

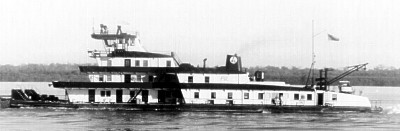

AMERICA 180' x 58' quad screw

$15.00

photo courtesy boat photo museum

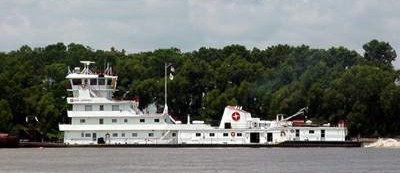

DICK CONERLY 200' x 54' triple screw

$15.00

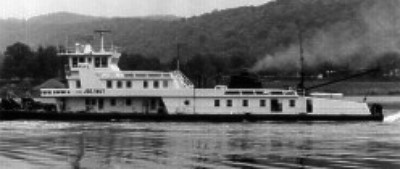

MISSOURI 162' x 45' quad screw

$15.00

photo courtesy boat photo museum

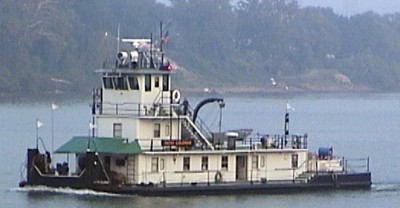

PATSY COLEMAN 102' x 26' single screw

$15.00











Click here to print an order form.

NOTICE: Paddlewheels and Props has a new catalog. There are plans for riverboats, stern wheel and prop driven towboats, and tugboats. Price for catalog is $7.00 U.S. & Canada, $9.00 overseas. Address is:

John L. Fryant, 7672 Crystal Cove Pointe, Maineville, OH 45039

Paddlewheels and Props web site : http://modelplans.steamboats.org/introduction.html

If you're looking for photos of towboats contact.... Dan Owen at the Boat Photo Museum

He has thousands of 8x10 b&w photos. Email: boatphotos@mindspring.com
